ClossPendant
Closs is a pendant luminaire for efficient light planning in workplaces and schools. The luminaire combines high luminous fluxes and good light comfort with a range of light distributions. It is suitable for continuous installation.
Alu-grey RAL 9006 (structure)
White RAL 9016
ClossPendant
Closs is a pendant luminaire for efficient light planning in workplaces and schools. The luminaire combines high luminous fluxes and good light comfort with a range of light distributions. It is suitable for continuous installation.
Installation
Luminaire for pendant installation, single. Wire suspension and friction lock are ordered separately, see Accessories. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
Connection via snap-in terminal block (3x1.5 mm²) at the end of the luminaire. When dimming, 5-way snap-in terminal block, 1-phase through-wiring possible. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40) or in alu-grey (RAL 9006) structured lacquer. Die-cast aluminium end caps, made from post-consumer recycled material. Fagerhult Plus luminaires are equipped with 2.5 m halogen-free mains cables and wires with eyelets. Designed by Epsilon.
Light Distribution

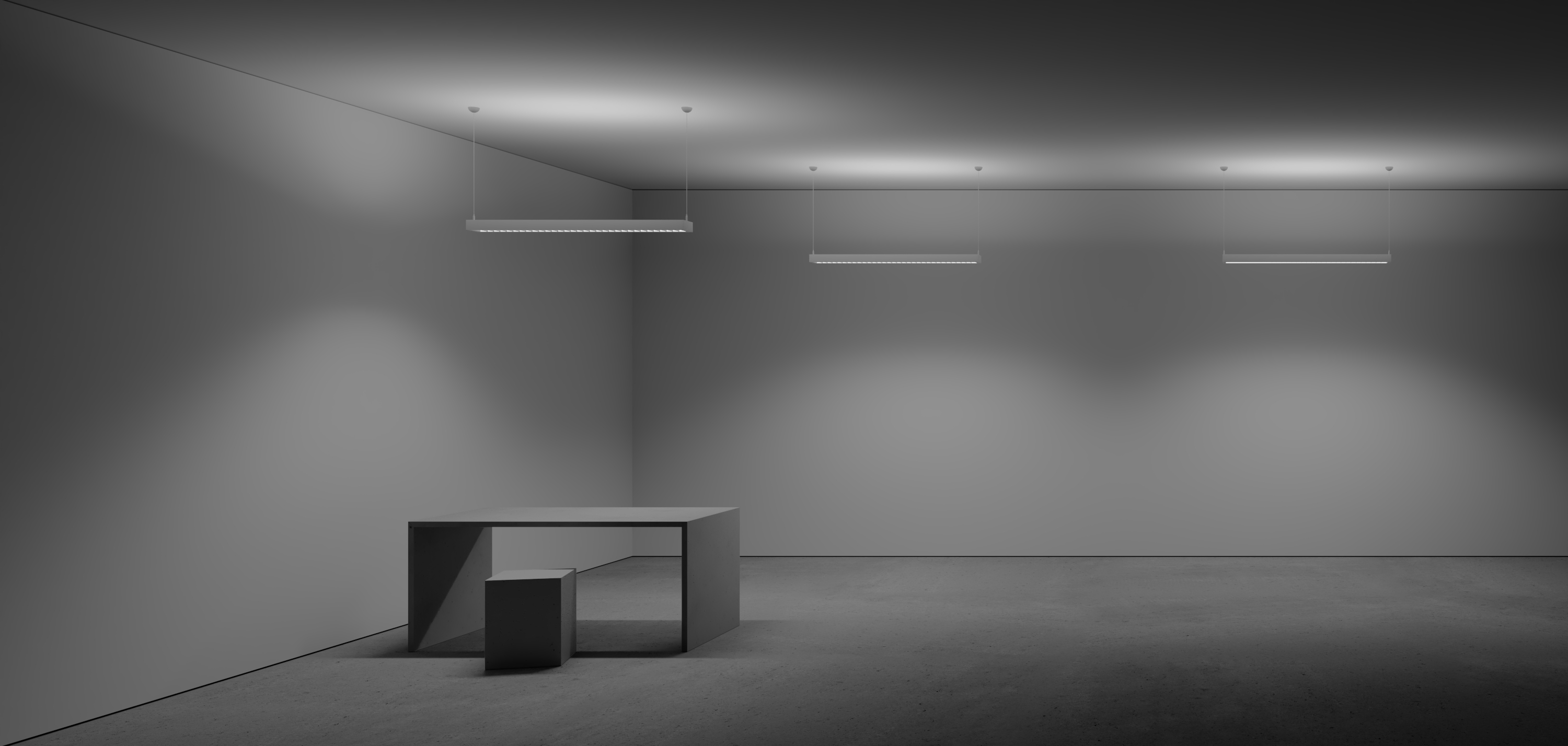

Direct/indirect 70/30.
Light data
CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
3263-7871 lm
CLO:
50 000 h
Optics
Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs.
Easy to recycle & ready to upgrade
The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
e-Sense BrightSwitchPIR sensor
Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Pull dim
Dimming via a cord with stepped or hold‑to‑dim activation.
Articles
Showing 65 of 65 Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Module | Louvre | Light distribution | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12168 | 24 | 3604 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12168-402 | 22 | 3263 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12168-516 | 23 | 3263 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12168-517 | 25 | 3604 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12169 | 38 | 5725 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12169-402 | 35 | 5184 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12169-516 | 35 | 5184 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12169-517 | 39 | 5725 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12170 | 47 | 6880 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12170-402 | 42 | 6230 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12170-516 | 43 | 6230 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12170-517 | 48 | 6880 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12171 | 54 | 7871 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12171-402 | 48 | 7113 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12171-516 | 49 | 7113 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12171-517 | 55 | 7871 | 3000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12172 | 24 | 3604 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12172-402 | 22 | 3263 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12172-516 | 23 | 3263 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12172-517 | 25 | 3604 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12173 | 38 | 5725 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12173-402 | 35 | 5184 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12173-516 | 35 | 5184 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12173-517 | 39 | 5725 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12174 | 47 | 6880 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12174-402 | 42 | 6230 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12174-449 | 3000 | Grey | Beta Opti | Direct/indirect | DALI/Phase-pulse | 1 pull dim |
|
||||||
| 12174-516 | 43 | 6230 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12174-517 | 48 | 6880 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12175 | 54 | 7871 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12175-402 | 48 | 7113 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12175-516 | 49 | 7113 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12175-517 | 55 | 7871 | 3000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12176 | 24 | 3708 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12176-402 | 22 | 3357 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12176-516 | 23 | 3357 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12176-517 | 25 | 3708 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12177 | 38 | 5890 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12177-402 | 35 | 5333 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12177-516 | 35 | 5333 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12177-517 | 39 | 5890 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12178 | 47 | 7078 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12178-402 | 42 | 6409 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12178-516 | 43 | 6409 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12178-517 | 48 | 7078 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12179 | 54 | 8098 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12179-402 | 48 | 7318 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12179-516 | 49 | 7318 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12179-517 | 55 | 8098 | 4000 | White | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12180 | 24 | 3708 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12180-402 | 22 | 3357 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12180-516 | 23 | 3357 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12180-517 | 25 | 3708 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12181 | 38 | 5890 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12181-402 | 35 | 5333 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12181-516 | 35 | 5333 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12181-517 | 39 | 5890 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12182 | 47 | 7078 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12182-402 | 42 | 6409 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12182-516 | 43 | 6409 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12182-517 | 48 | 7078 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
|||
| 12183 | 54 | 8098 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect |
|
||||
| 12183-402 | 48 | 7318 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 |
|
||
| 12183-516 | 49 | 7318 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch absence | 50000 |
|
||
| 12183-517 | 55 | 8098 | 4000 | Alu grey | 1217x125x55 | 1200 | Beta Opti | Direct/indirect | e-Sense BrightSwitch on/off |
|
Showing 54 of 54 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire bracket including friction locks | Wire bracket/pair | 94489 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 | |
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 | |
|
Opal diffuser | Opal diffuser, 1200 mm | 94191 | |
|
Continuous mounting coupler | Continuous coupler including friction locks – white/each | 91969 | |
|
Continuous mounting coupler | Continuous coupler including friction locks – grey/each | 91970 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 | |
|
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 | |
|
Remote control e-Sense BrightSwitch | Remote control | 86359 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96393 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 | |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 | |
|
Cutters | Cutters, each | 94248 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
