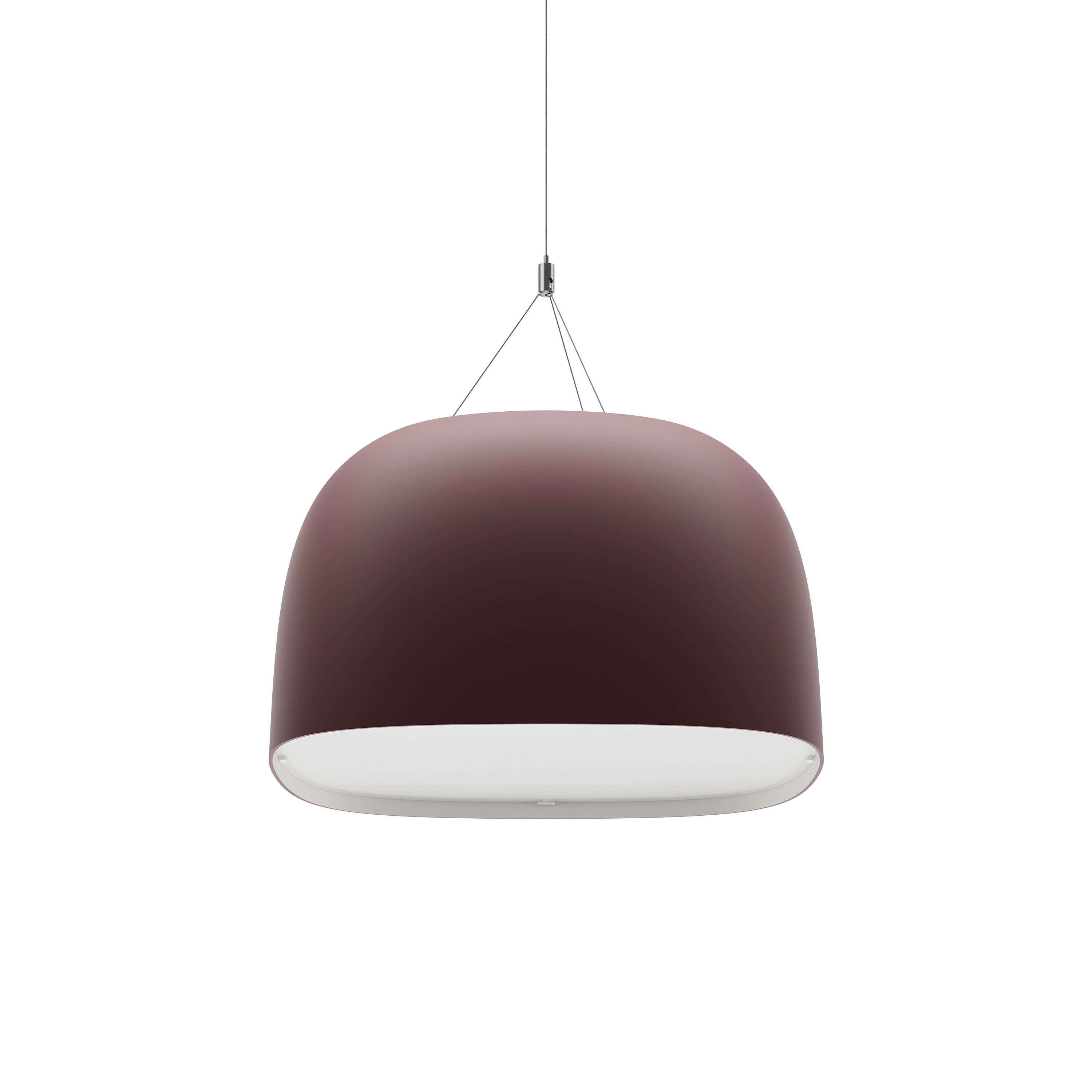

ScootPendant
Scoot is a decorative pendant luminaire for office environments and social areas. It’s part of Fagerhult’s Scoot family. Scoot has a soft design language with direct/indirect light distribution and is available in five colours.
ScootPendant
Scoot is a decorative pendant luminaire for office environments and social areas. It’s part of Fagerhult’s Scoot family. Scoot has a soft design language with direct/indirect light distribution and is available in five colours.
Installation
Two-point wire pendant. Supplied with ceiling cup. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x2.5 mm² in ceiling cup. 1-phase through-wiring possible. Surface-mounted mains cable possible 180°. Using cutters (94248), a cut-out is made in the ceiling cup for a surface-mounted mains cable. Wire length 4 m. The luminaire is supplied with a 2.8 metre transparent mains cable, 5x0.75 mm². CLO (Constant Light Output).
Design
Luminaire body in ABS plastic lacquered in black (NCS S 8500-N matt), blue (NCS S 3030-B10G matt), Dusty Plum (NCS S5020-R matt), white (NCS S 0300-N matt) or green (NCS S 3010-G matt). Indirect light is covered by an opal film that generates a wide beam that also serves as a dust cover. White, plastic ceiling cup. Design by PetterssonRudberg.
Light Distribution

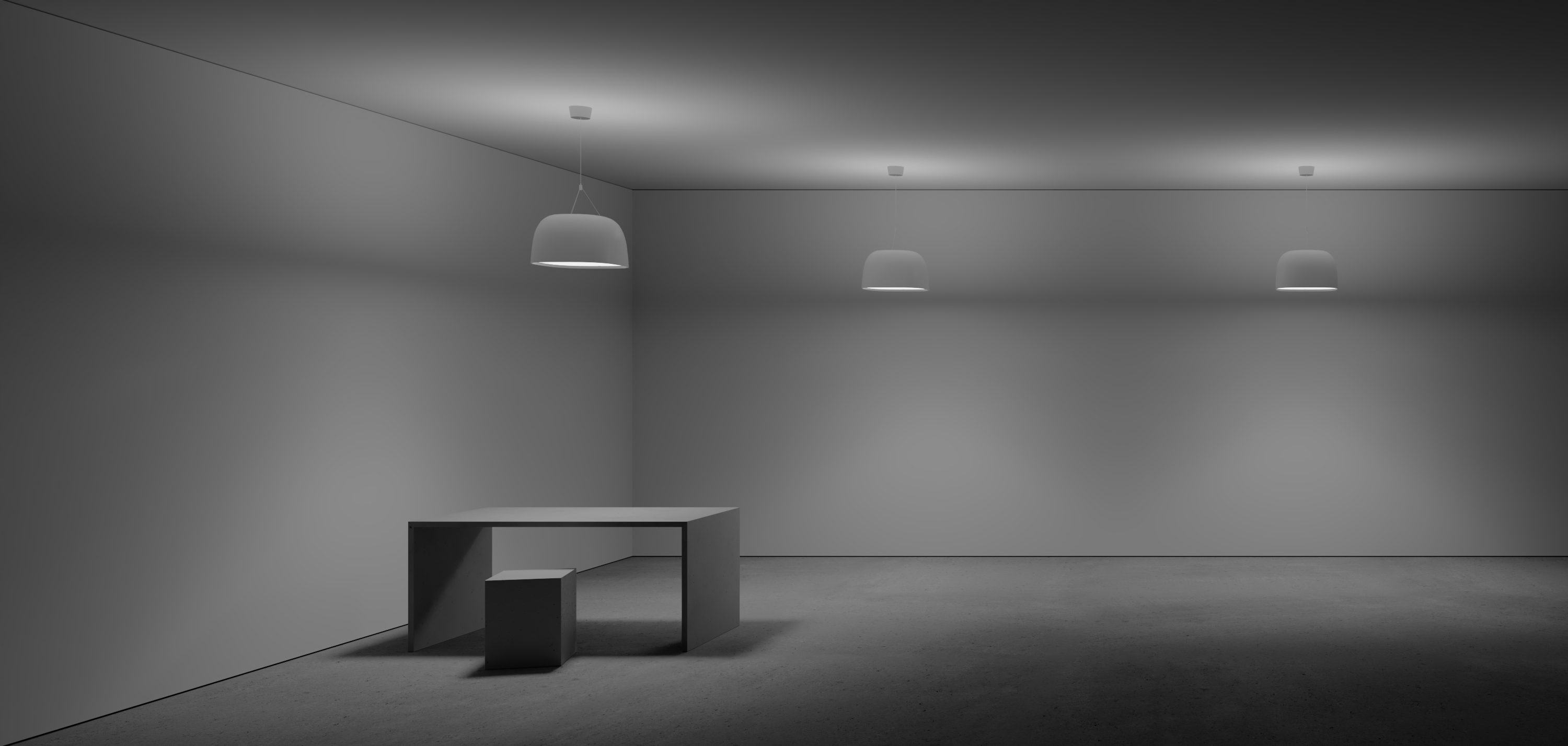

Direct/indirect 65/35.
Light data
Optics

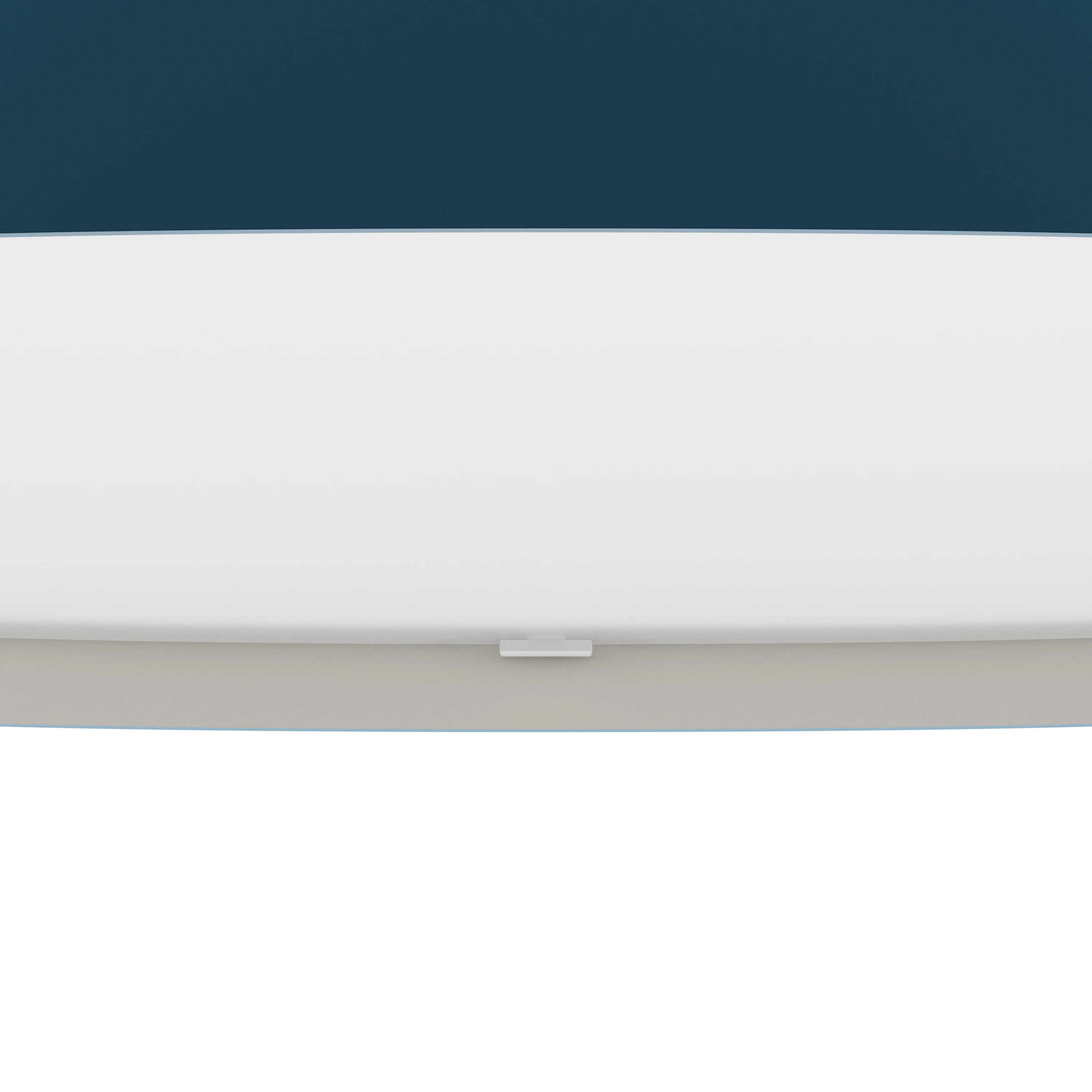

Delta – micro-prism louvre in acrylic (PMMA). Opal – frosted acrylic (PMMA) disc.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Louvre | Light distribution | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54890-402 | 25 | 3112 | 3000 | Dusty Plum | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54891-402 | 25 | 3202 | 4000 | Dusty Plum | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54892-402 | 25 | 2956 | 3000 | Dusty Plum | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54893-402 | 25 | 3041 | 4000 | Dusty Plum | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54894 | 33 | 3235 | Dusty Plum | 450 | 275 | Opal | 65/35 | DALI | 50000 | Tunable White |
|
||
| 54895 | 33 | 3040 | Dusty Plum | 450 | 275 | Delta | 65/35 | DALI | 50000 | Tunable White |
|
||
| 54940-402 | 25 | 3112 | 3000 | Black | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54941-402 | 25 | 3112 | 3000 | White | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54942-402 | 25 | 3112 | 3000 | Green | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54943-402 | 25 | 3112 | 3000 | Blue | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54945-402 | 25 | 3202 | 4000 | Black | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54946-402 | 25 | 3202 | 4000 | White | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54947-402 | 25 | 3202 | 4000 | Green | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54948-402 | 25 | 3202 | 4000 | Blue | 450 | 275 | Opal | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54950-402 | 25 | 2956 | 3000 | Black | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54951-402 | 25 | 2956 | 3000 | White | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54952-402 | 25 | 2956 | 3000 | Green | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54953-402 | 25 | 2956 | 3000 | Blue | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54955-402 | 25 | 3041 | 4000 | Black | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54956-402 | 25 | 3041 | 4000 | White | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54957-402 | 25 | 3041 | 4000 | Green | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54958-402 | 25 | 3041 | 4000 | Blue | 450 | 275 | Delta | 65/35 | DALI/Phase-pulse | 50000 |
|
||
| 54972 | 33 | 3235 | Black | 450 | 275 | Opal | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54973 | 33 | 3235 | White | 450 | 275 | Opal | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54974 | 33 | 3235 | Green | 450 | 275 | Opal | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54975 | 33 | 3235 | Blue | 450 | 275 | Opal | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54977 | 33 | 3040 | Black | 450 | 275 | Delta | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54978 | 33 | 3040 | White | 450 | 275 | Delta | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54979 | 33 | 3040 | Green | 450 | 275 | Delta | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 54980 | 33 | 3040 | Blue | 450 | 275 | Delta | Direct/indirect | DALI | 50000 | Tunable White |
|
