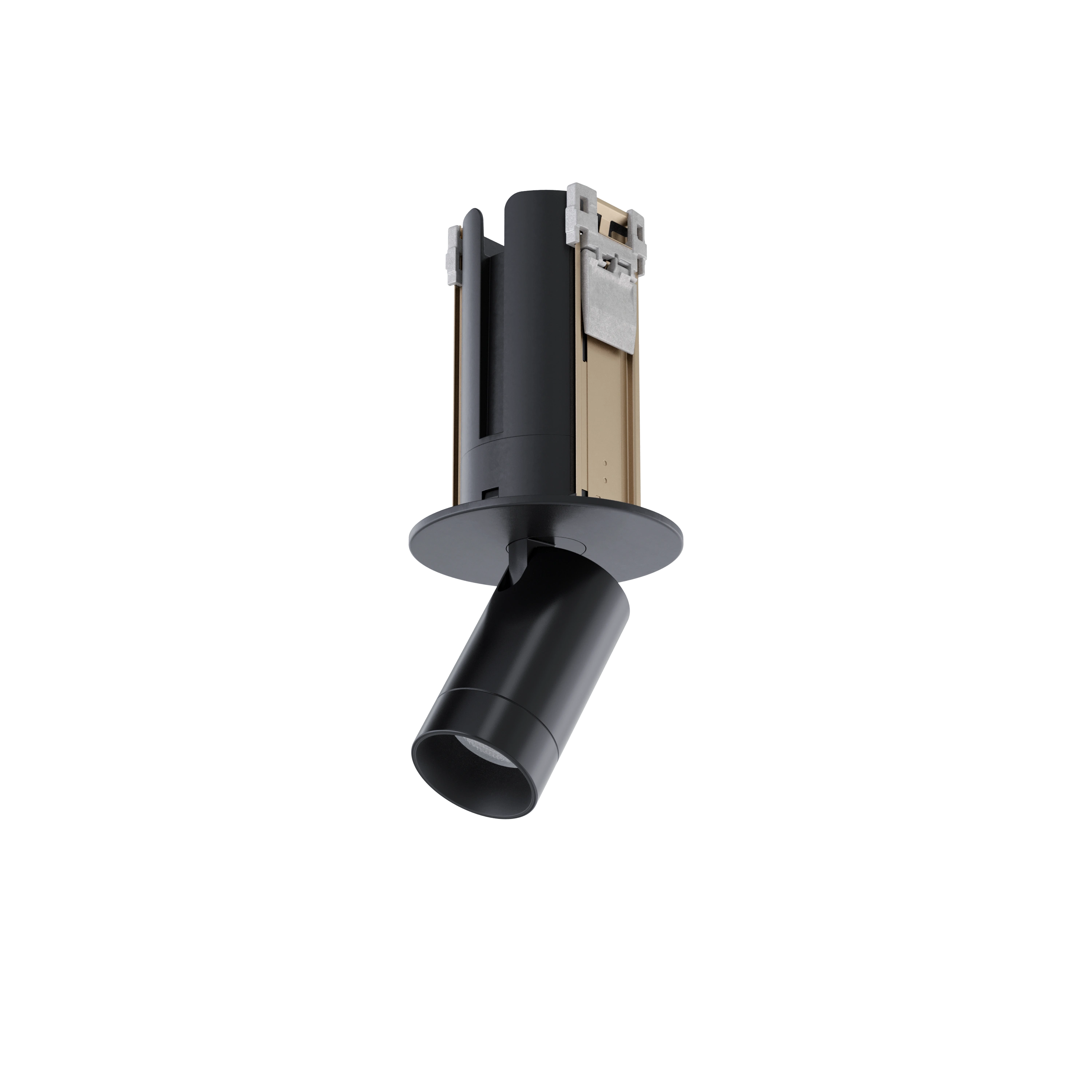

ComboLINE SpotlightRecessed

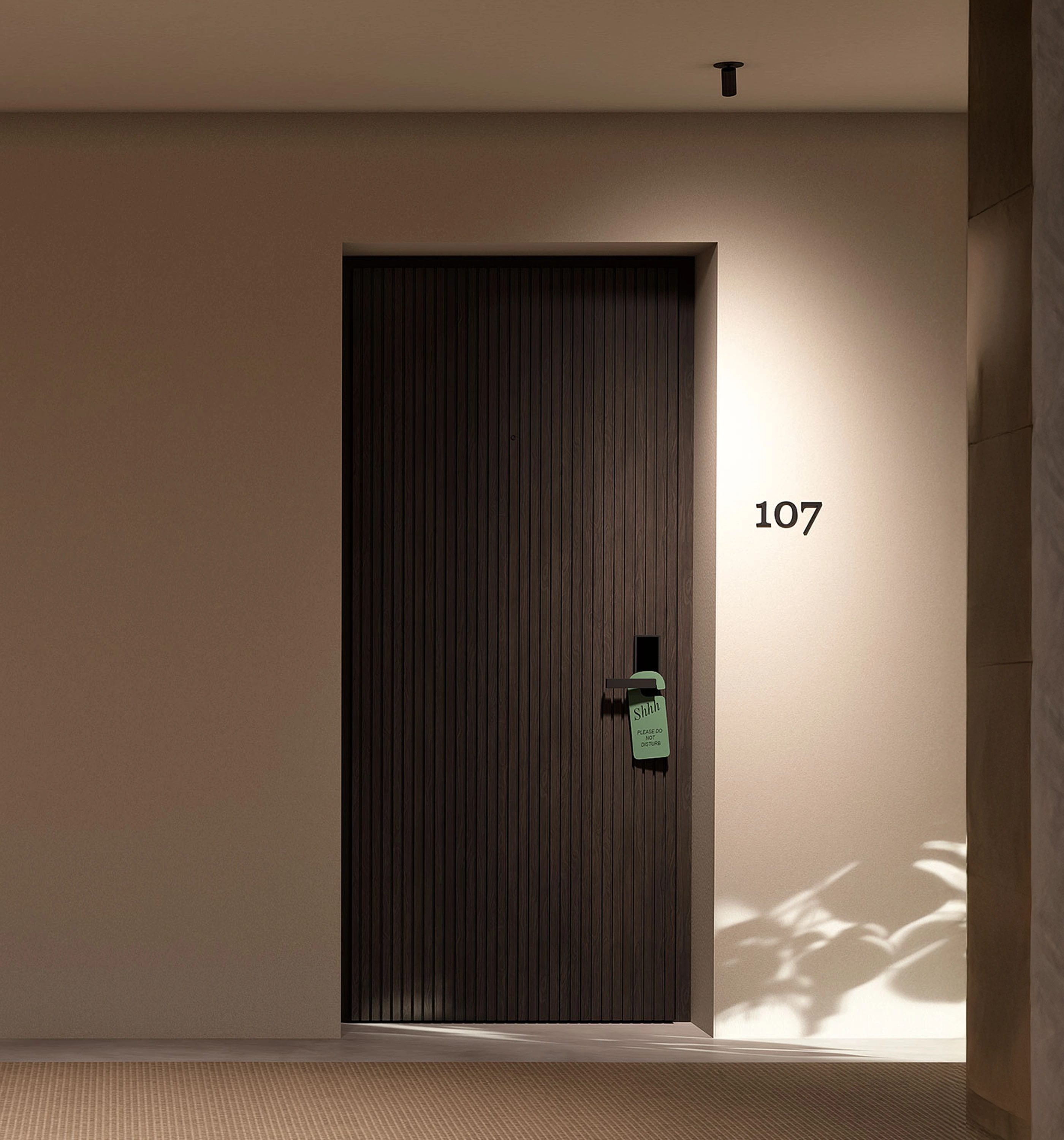

ComboLINE is a recessed spotlight for accent lighting with high light comfort and a clear light pattern for effective display. Tool-free installation with Plug and Play.
ComboLINE SpotlightRecessed
ComboLINE is a recessed spotlight for accent lighting with high light comfort and a clear light pattern for effective display. Tool-free installation with Plug and Play.
Installation
Luminaire for recessed installation in suspended ceilings. Stable assembly springs included. Do not cover with insulation. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. For detailed information, see the installation instructions.
Connection
The luminaire is supplied with 2.5 m mains cable and connector for 6-way splitter on the driver as standard.
Design
Luminaire housing made of aluminium. Lacquered in white (RAL 9016) or black (RAL 9005).
Light Distribution
Narrow or medium beam.
Light data

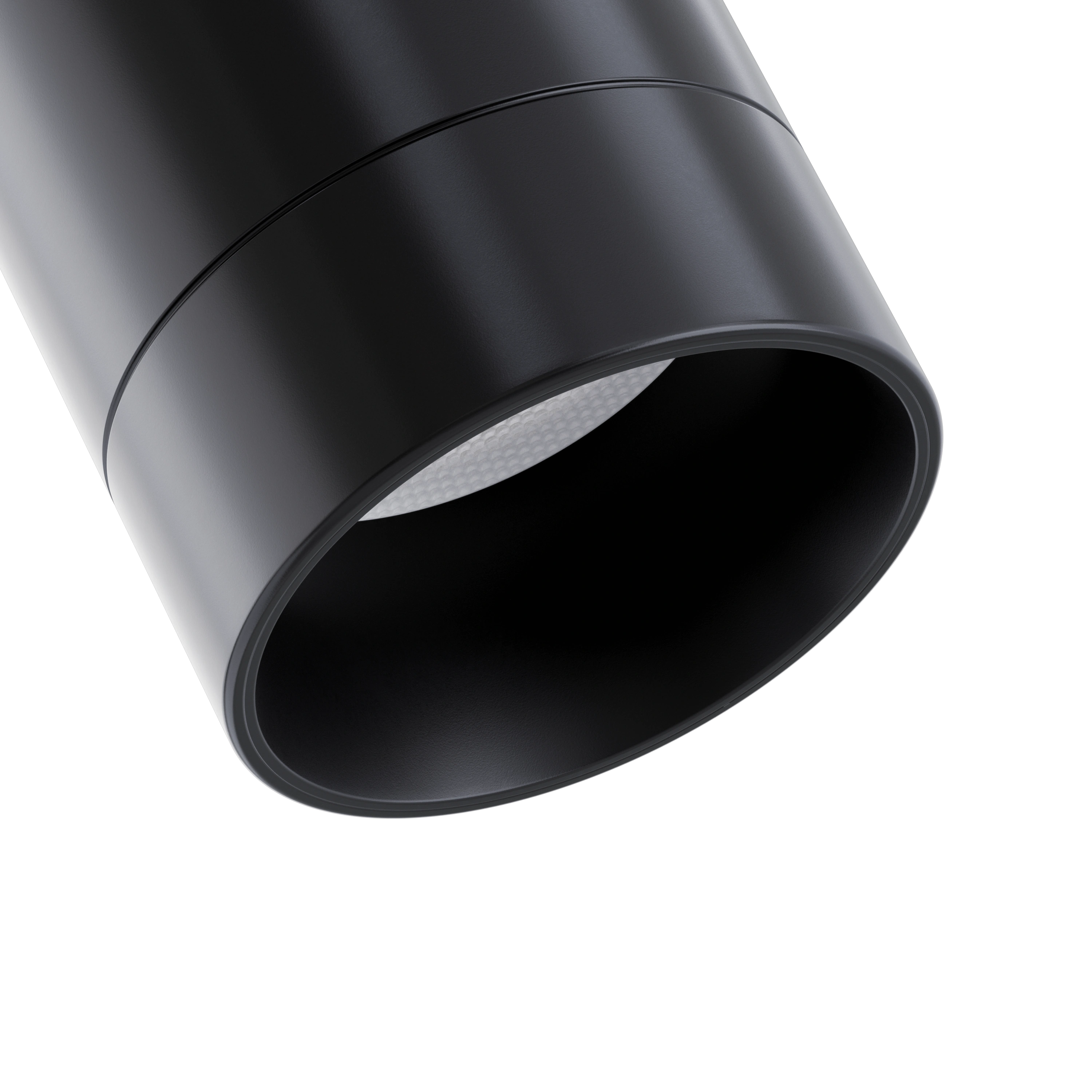

Optics
Lens.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Diameter, mm | Dimensions, mm | Light distribution | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|
| 82813 | 7.3 | 516 | 2700 | 90 | White | 75 | 167 | Narrow Beam, 19° |
|
|
| 82814 | 7.3 | 468 | 2700 | 90 | White | 75 | 167 | Medium Beam, 28° |
|
|
| 82815 | 7.3 | 516 | 2700 | 90 | Black | 75 | 167 | Narrow Beam, 19° |
|
|
| 82816 | 7.3 | 468 | 2700 | 90 | Black | 75 | 167 | Medium Beam, 28° |
|
|
| 82817 | 7.3 | 516 | 3000 | 90 | White | 75 | 167 | Narrow Beam, 19° |
|
|
| 82818 | 7.3 | 468 | 3000 | 90 | White | 75 | 167 | Medium Beam, 28° |
|
|
| 82819 | 7.3 | 516 | 3000 | 90 | Black | 75 | 167 | Narrow Beam, 19° |
|
|
| 82820 | 7.3 | 468 | 3000 | 90 | Black | 75 | 167 | Medium Beam, 28° |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Baffle ComboLINE | Baffle ComboLINE, gold | 92764 | |
|
Accessories Integrated Lighting | 60W 24V constant voltage driver with 6-way splitter | 99804-1000 | |
|
Accessories Integrated Lighting | 60W 24V constant voltage DALI driver with 6-way splitter | 99050-1000 |
