ComboLINE Luminaires
ComboLINE Luminaires
Installation
Wall/ceiling mounted or suspended pendant. Single or series installation. The luminaires click easily into the profile system.
Connection

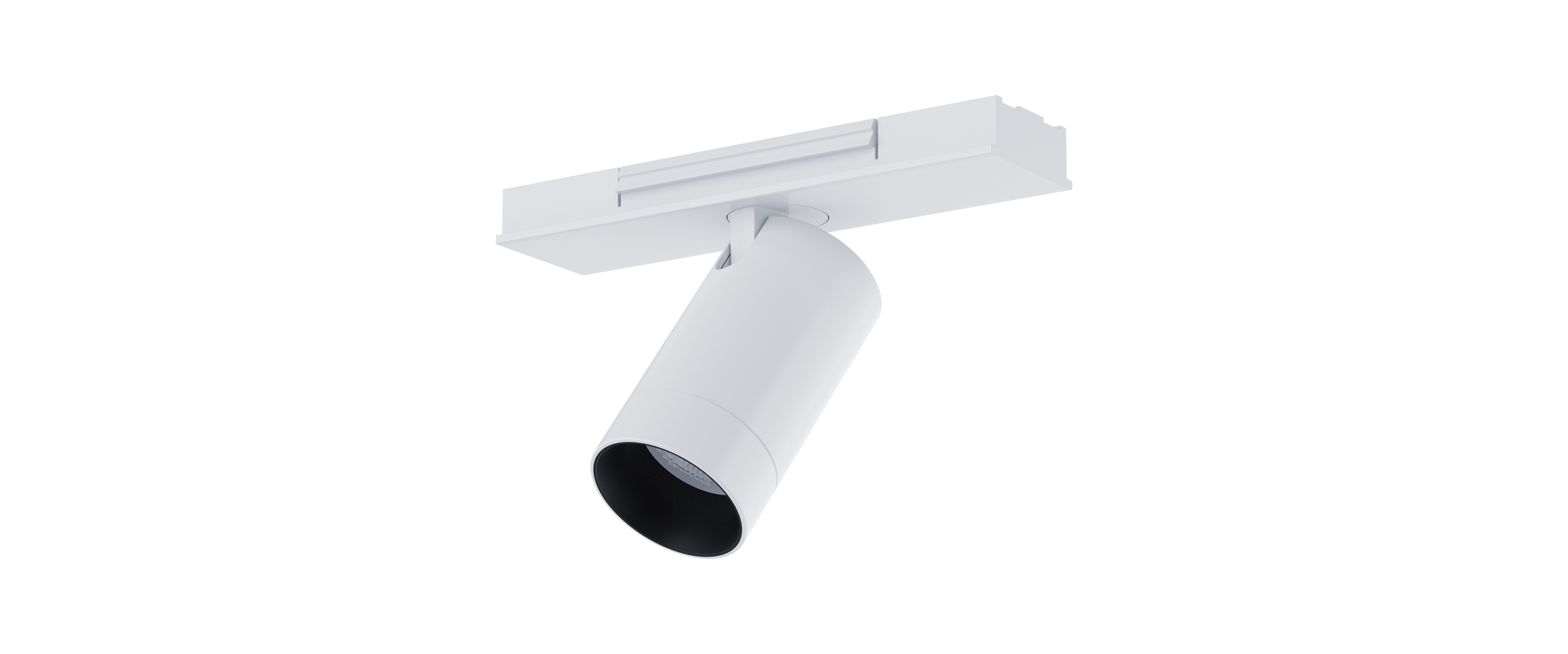

The 1-spot, 3-spot and linear luminaires click into the profile system. Cover plates are available which can be inserted to conceal any open parts in the profile system once the luminaires have been installed. The basic luminaire comes with a 2.5 m connection cable (5x0.75 mm2 excl. plug) as standard. The series units are equipped with a quick-connector at each end.
Design
Standard white (RAL 9016) or black (RAL 9005).
Light Distribution
Spotlights with narrow or medium light distribution. Linear luminaire with wide light distribution for general lighting
Showing 6 of 6 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Baffle ComboLINE | Baffle ComboLINE, gold | 92764 | |
|
e-Sense Stage RTC Backup | e-Sense Stage Stand-Alone Control Box RTC Backup | 99816 | |
|
|
e-Sense Stage Stand-alone DALI | e-Sense Stage Stand-Alone Control Box DALI | 99812 | |
|
|
e-Sense Stage Relay | e-Sense Stage Stand-Alone Control Box Relay | 99814 | |
|
Xpress push button panel | Xpress push button panel with long range, white. | 82178 | |
|
Xpress push button panel | Xpress push button panel with long range, black. | 82179 |
