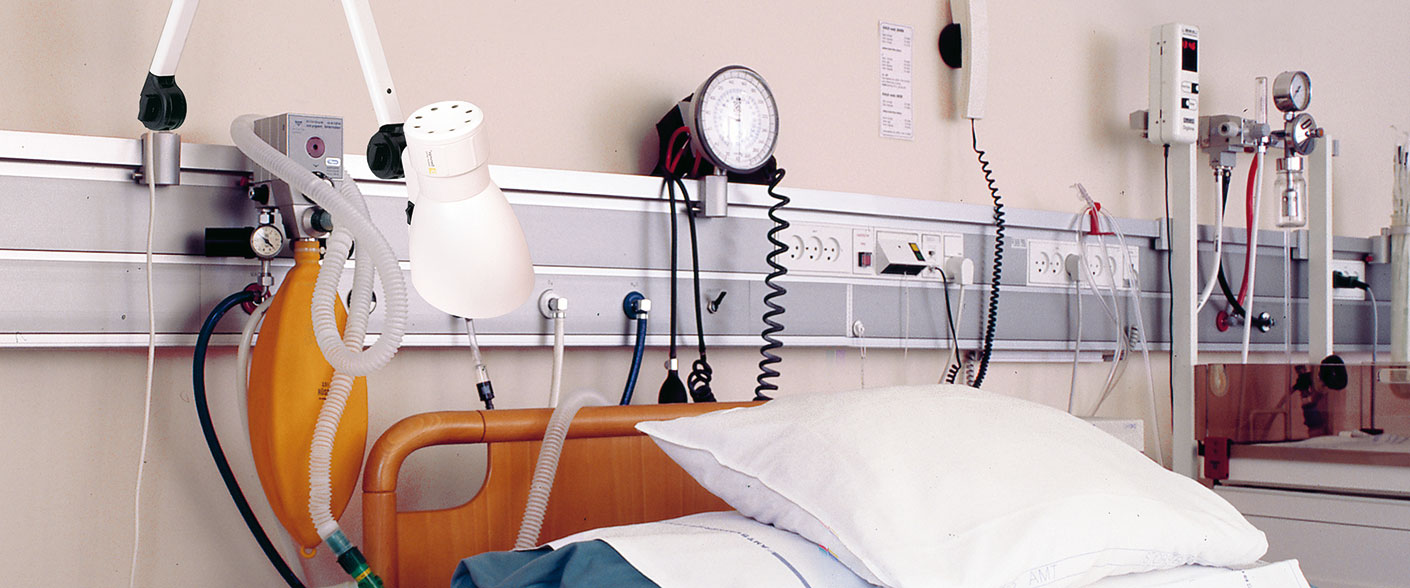

Aluflex 9

Connection

Electrical cables and gas pipes can be connected in three ways; from the side via the panel’s end-cap, via holes in the bottom profile’s rear and from above via the supply duct. All electrical and gas outlet sockets are internally connected and routed to terminal blocks at the connection end.

Design

Aluflex 9 is a group of ducts where the gas duct with straight profile forms the base. An unlimited number of intermediate ducts can then be added, finished with a straight, sloping or round cover section or with a continuous luminaire installation on top. The panels can be supplied in lengths up to 6200 mm without being joined.
