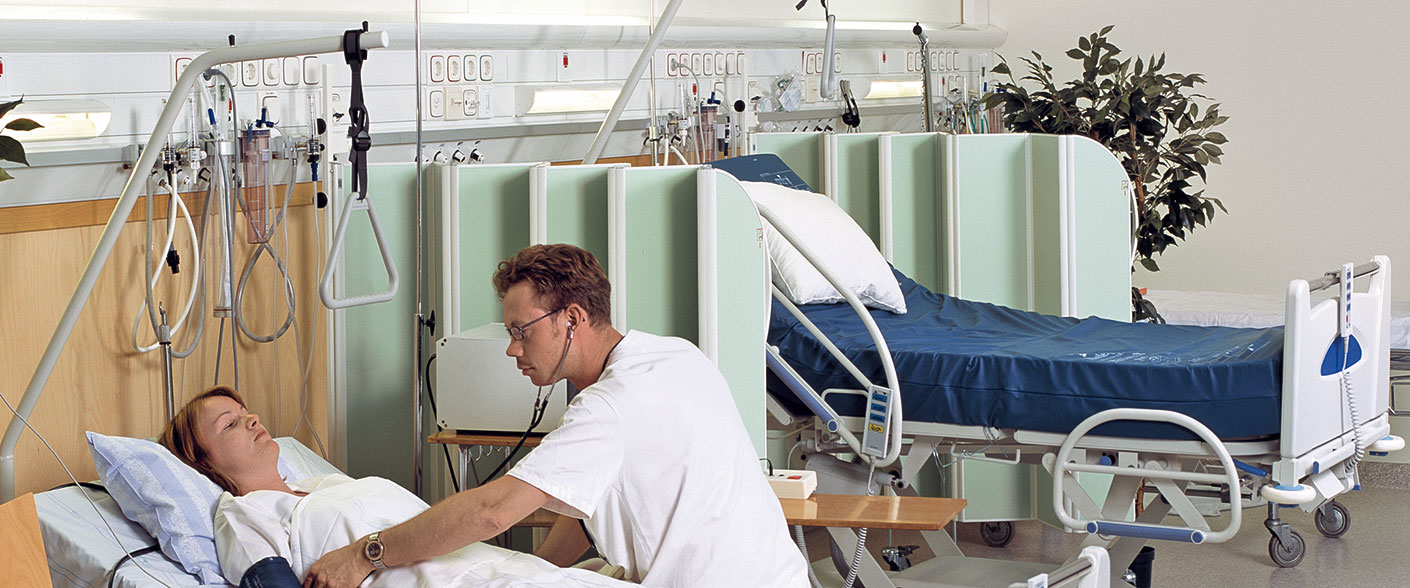

Aluflex 12
Aluflex 12
Connection
Electrical cables and gas pipes can be connected in three ways; from the side via the panel’s end-cap, via holes in the bottom profile’s rear and from above via the supply duct. All electrical and gas outlet sockets are internally connected and routed to terminal blocks at the connection end.
Design
Aluflex 12 is a group of ducts with the angled gas outlets forming the base. An unlimited number of intermediate ducts can then be added and finished with a straight sloping or round cover section or with a continuous luminaire installation on top. The gas duct can also be equipped with any model of equipment rail. The panels can be supplied in lengths up to 6200 mm without being joined.
Showing 14 of 14 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Patient arm | Patient arm | 99527 | |
|
|
Arm for drip carrier | Arm for drip carrier | 99524 | |
|
|
IC-rail | 320x180 mm | 99530 | |
|
|
IC-rail | U-shaped, 580x230 mm | 99529 | |
|
|
Shelf | Shelf with one drawer | 99509 | |
|
|
IC-rail | U-shaped, 480x230 mm | 99528 | |
|
|
IC-rail | 350x250 mm | 99531 | |
|
|
Shelf | Extensible shelf | 99505 | |
|
|
Shelf | Shelf with two drawers | 99538 | |
|
|
Drip carrier | Drip carrier | 99521 | |
|
|
Supply ducting | 4-gang, 200x60 | 17446 | |
|
|
Supply ducting | 3-gang, 160x53 | 17445 | |
|
|
Supply ducting | 3-gang, 160x40 | 17448 | |
|
|
Supply ducting | 1-gang, 60x60 | 17449 |
