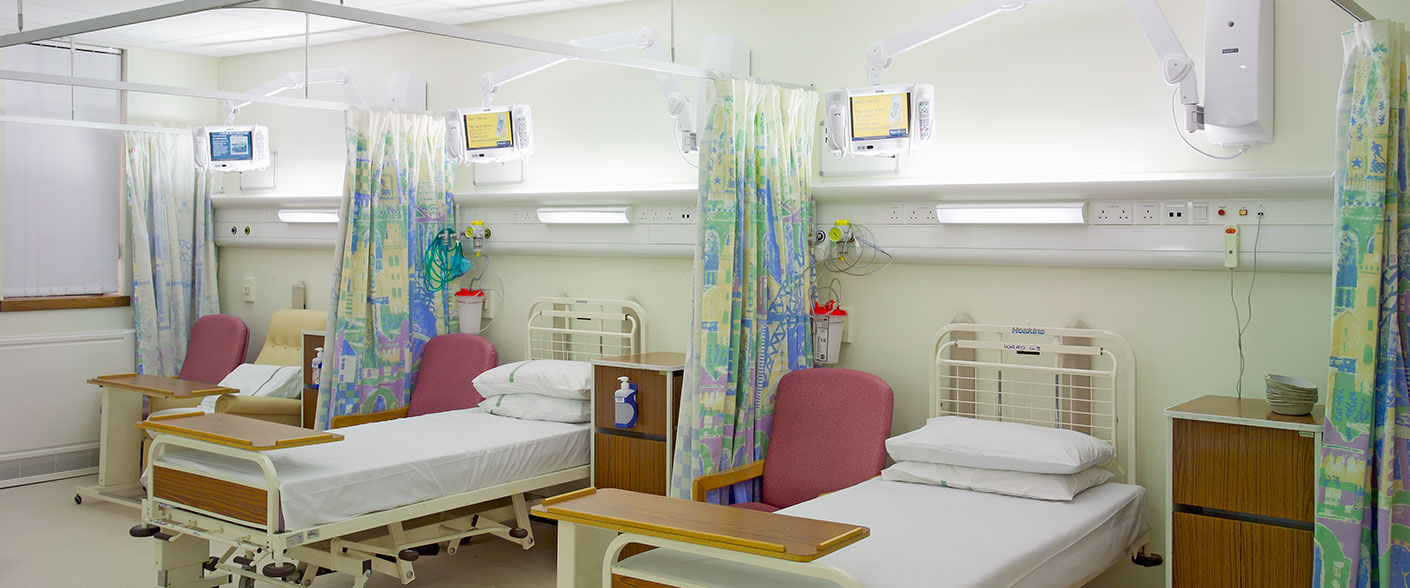

Aluflex 11

Connection

Electrical cables and gas pipes can be connected in three ways; from the side via the panel’s end-cap, via holes in the bottom profile’s rear and from above via the supply duct. All electrical and gas outlet sockets are internally connected and routed to terminal blocks at the connection end.

Design

Aluflex 11 is a group of ducts where a round section, with an integrated outlet section, forms the base. An unlimited number of intermediate ducts can then be added, finished with a straight, sloping or round cover section or with a continuous luminaire installed on top. The panels can be supplied in lengths up to 6200 mm without being joined.
